STI101 AC Adapter Outage

Problem

An issue was reported (24th June 2025) that megacq had suddenly stopped receiving triggers.
Triggers had been recorded previously that session, but after a new PRESENTATION paradigm was started, no triggers were observed.
No trigger LEDS were observed lighting up GREEN on STI101.

Fix

The AC Adapter, powering the Stimulus Trigger Interface (STI101), was found to be off (the GREEN power LED wasn't lit).
Powering off its Mains socket for a few seconds, then switching back on, repowered the AC Adapter, and triggers were again observed in megacq.

Solution

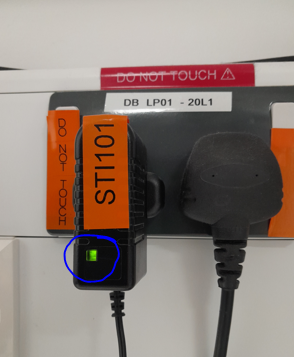

AC Adapter

  • No other UPS-protected sockets appeared to be affected, so hopefully this was just a one-off occurrence.

  • MEG Operators are now, as part of their setup procedure moving forward, to check that the AC Adapter power-on LED is showing GREEN (as indicated).




A "TRIGGER_TEST" batch file has also been created to test whether the triggers are being generated correctly, and show on STI101.

Double-clicking the batch file will ...

  • Start a new instance of MATLAB (won't interfere with any MATLAB already open).
  • Run a check/test, twice, that all 8 triggers work (the GREEN LEDs on STI101 In 1 => In 8 switch on then off in sequence).
  • Then exit MATLAB gracefully.

Code used ...

TRIGGER_TEST.bat

@echo off
matlab -nosplash -r "cd('L:\winterj\');TriggersOnOff;TriggersOnOff;quit"

TriggersOnOff.m

sendTrigger = initialiseParallelPort();

for ii = 0:7
    sendTrigger(power(2, ii));
    WaitSecs(0.2);
end

%% Reset Triggers to 0
sendTrigger(0);

initialiseParallelPort.m

function sendTrigger = initialiseParallelPort()
% sendTrigger = initialiseParallelPort()
%
% Tries to initialise a parallel port using the inpoutx64.dll library.
% Returns the function sendTrigger, which takes a single 8-bit integer
% input and sends it to the parallel port. NB: no input checking is done!
% Make sure you only use values 1-255. Also, the trigger lines are not
% pulled down automatically, you need to do this manually by sending a 0:
%
% sendTrigger(15)  % send trigger 15
% ... do something ... e.g. a Screen('Flip')
% sendTrigger(0)  % pull all lines down
%
% If initialisation fails, returned sendTrigger-function simply prints
% out the input code; useful for developing/testing.

% Revision history:
% - created on 26 Jan 2018, cjb
%
% Copyright 2018 Christopher J. Bailey under the MIT License
%
% Permission is hereby granted, free of charge, to any person obtaining a
% copy of this software and associated documentation files (the
% "Software"), to deal in the Software without restriction, including
% without limitation the rights to use, copy, modify, merge, publish,
% distribute, sublicense, and/or sell copies of the Software, and to
% permit persons to whom the Software is furnished to do so, subject to
% the following conditions:
%
% The above copyright notice and this permission notice shall be included
% in all copies or substantial portions of the Software.
%
% THE SOFTWARE IS PROVIDED "AS IS", WITHOUT WARRANTY OF ANY KIND, EXPRESS
% OR IMPLIED, INCLUDING BUT NOT LIMITED TO THE WARRANTIES OF
% MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE AND NONINFRINGEMENT.
% IN NO EVENT SHALL THE AUTHORS OR COPYRIGHT HOLDERS BE LIABLE FOR ANY
% CLAIM, DAMAGES OR OTHER LIABILITY, WHETHER IN AN ACTION OF CONTRACT,
% TORT OR OTHERWISE, ARISING FROM, OUT OF OR IN CONNECTION WITH THE
% SOFTWARE OR THE USE OR OTHER DEALINGS IN THE SOFTWARE.


try
    % ------------------------------------------------------------------------
    % INITIALIZE PARALLEL PORT
    % ------------------------------------------------------------------------
    % Aarhus: based on InpOut-library, and C:\Windows\System\inpoutx64.dll
    % Aarhus: io64.mex in stimuser's Documents\MATLAB-folder (in path)
    % create an instance of the io64 object
    ioObj = io64;
    % initialize the interface to the inpoutx64 system driver
    status = io64(ioObj);
    % LPT1 memory port address
    % address = hex2dec('DFF8');
    address = hex2dec('CFF8');

    sendTrigger = @(code) io64(ioObj, address, code);
catch  % assume either drivers not found or running on non-stim PC
    fprintf(1, '############################################################\n');
    fprintf(1, 'WARNING: No parallel port access, triggers will not be sent!\n');
    fprintf(1, '############################################################\n');
    sendTrigger = @(code) fprintf(1, 'TRIG %d\n', code);
end
end

With many thanks to Dr. Chris Bailey, Aarhus Univeristy
