Fixing Noisy Channels

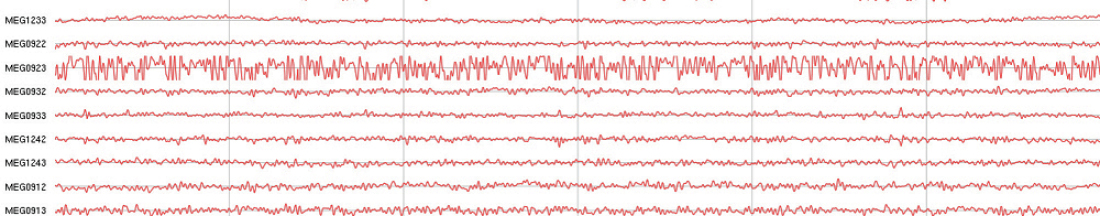

If, on starting Acquisition, you encounter a noisy channel, after installing your participant in the gantry chair and your empty room check was fine beforehand ...

NoisyMEG0923

  • Hopefully you would have confirmed your participant was clean of any metal (correct use of both metal detectors).
  • Ask your participant to open/close their mouth (dental artefacts).
  • Ask your participant to blink their eyes once per second (eye makeup artefact).
  • Ask your participant to take 2 deep breaths (clothing arefefact).

First thing to try would be a channel reset.

  • From the Acquisition Menu Bar, choose ...
    • Tools -> Reset Channels

The noisy channel may return to normal after the reset artefact has passed through.

If not, try heating the sensor.

  • Stop any ongoing Acquisition by pressing the Stop button.
  • From the Menu Bar, choose Tools -> Tuner.
  • Load the latest Tuning file File -> Load Tunings -> Select OK (to load the default tuning file He_90.tnp).
  • Select Measure Noise.
  • In the View Channel window, replace the word ALL with the noisy channel in question e.g. MEG0923, press Enter.
  • From the Menu Bar, choose Commands -> Heat sensor. Wait for the buffer to be reprocessed... noise level should hopefully show a reduction.
  • Select Stop measurement, then Stop Collector.
  • From the Menu Bar, choose File -> Exit -> Yes to close the Tuner window.
  • Start Acquisition, check if channel is still noisy.

If the sensor is still noisy, perform a [RAP].

  • Once done, then ...
  • Restart Acquisition.
  • From the Menu Bar, choose Tools -> Tuner.
  • Load the latest Tuning file File -> Load Tunings -> Select OK (to load the default tuning file He_90.tnp).
  • Select Measure Noise to see if the RAP has reduced the channel noise level.
  • If not, try another RAP and then repeat from "Restart Acquisition" above.

If the sensor is still noisy, do a soft reboot/reset of the electronics, as per [RESTART ACQUISITION (Resetting the electronics)]

  • Exit Acquisition back to the Console login screen.
  • Open the Electronics Cabinet.
  • Press the Reset button on the [System Controller Card], as shown by the arrow.
  • Confirm all cards/boards are reset (all are showing GREEN LEDS) - takes 20-30sec.
  • Close the Electronics cabinet door.
  • Perform a RAP, then make sure the deafult tuning file is reloaded...
    • Acquisition -> Tuner -> Load Tunings -> Measure Noise.

If the sensor is still noisy, contact MEG Support to attend to power down then restart the electronics.

Dr. Chris Bailey, former MEG Lab Manager at Aarhus University, Denmark, had this to say re: "noisy" participants ...back in 2018.

First, I’d try to figure out whether the artefacts are body motion-related. Ask the participant to keep completely still, and hold their breath while you count slowly to ten. At ’two’, hit “Reset channels”. If the sensors return to something sane (non-saturated) after the reset-artefact has passed, there’s likely something magnetic on or in the participant.

The Reset is needed if the source is very strong: the SQUID’s operating points will be screwed in a very strong static field. You can also try without the Reset, just ask them to hold (Very) still.

We routinely use Hospital scrubs, at least the blouse. Hair wash is probably less likely to help, but getting all pins and clips out is important. A recent MRI will be a problem if there’s magnetic material inside the subject. Finally, women with bras need to be asked whether they have a metal support, many do. Most artefacts will clearly be breathing-correlated, so that usually helps locating external sources.
