EyeLink Analog Output

In order to ensure the EyeLink "X", "Y" and "P" (pupil) are recorded on MEG channels MISC#1, MISC#2 and MISC#3...

EyeLink Analog Output setting

  • Make sure MISC#1, MISC#2, and MISC#3 are selected in MEG Acquisition.
  • Select a value for Analog Output e.g. Raw, in EyeLink Set Options (bottom left of screen).
  • Make sure the EyeLink is set to RECORD in order to see the Output.




If using any of the Binocular settings, make sure the LEFT eye is ALWAYS selected
- DAC3, DAC4, and DAC5 are not being recorded (no cable connection from EyeLink Host A/D card output to MEG MISC channels).

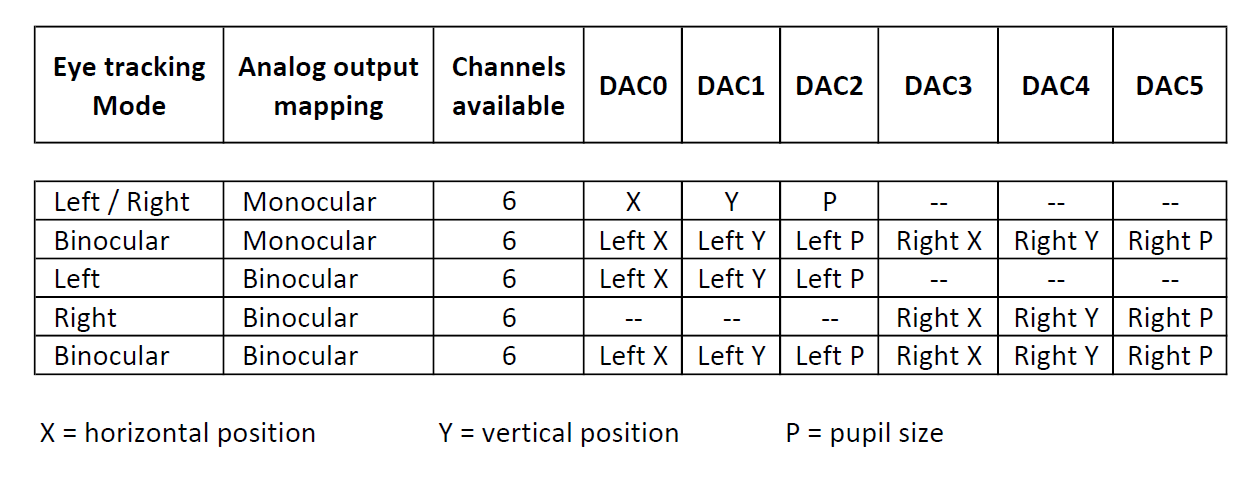

EyeLink Analog Outputs EyeLink Analog Outputs.
